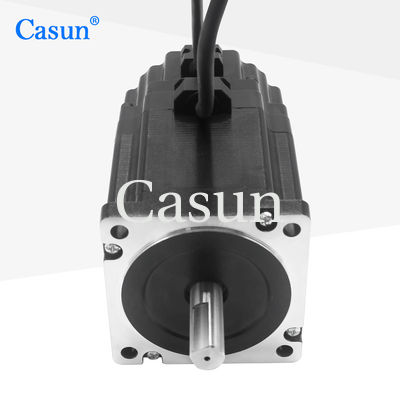

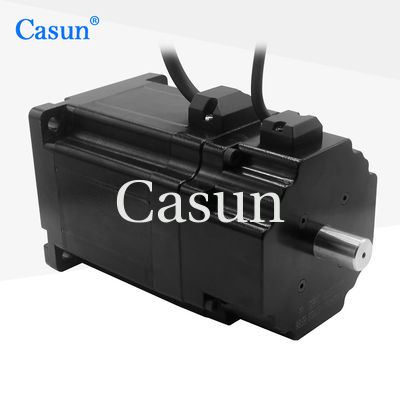

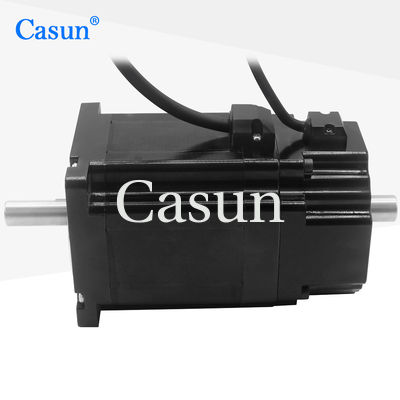

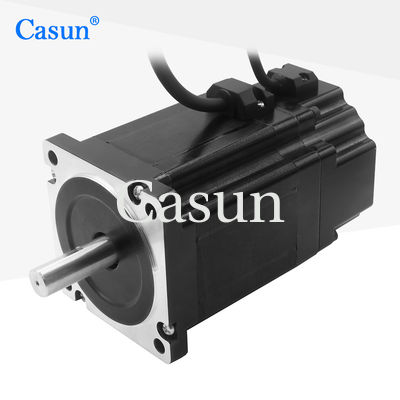

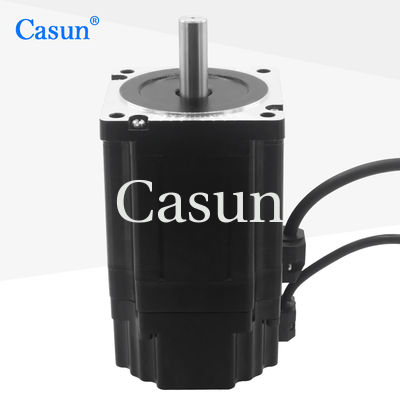

86*86*98mm NEMA 34 Hybrid Stepping Motor With Brake For Industrial Applications

The braking system can maintain the position of the motor without external power supply.

The movement is achieved through precise angle control, and each step of movement is precisely defined.

Features:

• Bipolar or unipolar versions available

• Our engineering team will reach out within 48 hours to deliver the optimal solution

• Each stepper motor model is suitable for diverse scenarios

• Customized service offerings

• Specialized in R&D and manufacturing

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Please click the "Get  a quote" button below to tell us your requirements.
