High-Performance Hybrid Stepper Motor with 100MΩ Min 500VDC Insulation Resistance, 42MM Size, and 21kg.cm Torque for Automation and Robotics

Marka Adı:	Casun
MOQ:	1PC
Ödeme Şartları:	L/C, D/A, D/P, T/T
Tedarik Yeteneği:	40000+PCS+Month

Detay Bilgi

Ürün Açıklaması

Detay Bilgi

Sertifika:

CE,ROHS,ISO

Motor Height:

64 Mm

Length:

56mm

Phase Current:

1A/phase

Insulationclass:

Class B

Insulation Resistance:

100MΩ Min，500VDC

Nominal Voltage:

120V

Torque:

21kg.cm

Portect Feature:

Enclosed

Packaging Details:

Carton:210x190x170

Vurgulamak:

100MΩ Min 500VDC Insulation Resistance Hybrid Stepper Motor

42MM Size NEMA 17 Stepper Motor

21kg.cm Torque Hybrid Step Motor

Ürün Açıklaması

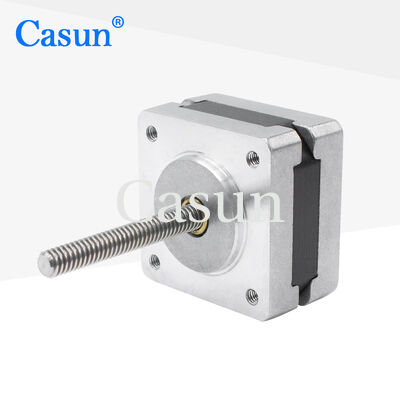

Hybrid Stepper Motor - 42MM NEMA 17

High-performance hybrid stepper motor engineered for precision motion control in automation, robotics, and industrial applications. Features 100MΩ minimum insulation resistance at 500VDC for enhanced electrical safety and reliability.

Key Features

Product Name: Hybrid Stepper Motor
Insulation Resistance: 100MΩ minimum at 500VDC
Nominal Voltage: 120V
Insulation Class: Class B
Phase Current: 1A per phase
Maximum Axial Force: 60N
Compact 42mm size with 56mm length

Technical Specifications

Length	56mm
Insulation Resistance	100MΩ Min, 500VDC
Max Axial Force	60N
Shaft	5mm D-cut Shaft
Gear Ratio	Multiple, From 3:1 To 200:1
Insulation Class	Class B
Dielectric Strength	500VDC For One Minute
Motor Height	64mm
Voltage	3.36V
Phase Current	1A/phase

Performance Characteristics

This NEMA 17 stepper motor combines permanent magnet and variable reluctance technologies for superior torque production at low speeds, smooth rotation, and higher step resolution. The hybrid design ensures quiet operation with reduced vibration, making it ideal for sensitive environments.

Application Areas

Ideal for precision motion control applications including:

CNC Machinery and Automation Equipment
3D Printers and Additive Manufacturing
Robotics and Automated Systems
Medical Equipment and Laboratory Instruments
Industrial Automation and Control Systems
Camera Controls and Positioning Systems

Certifications & Quality: CE, ROHS, and ISO certified. Manufactured with Class B insulation and dielectric strength tested at 500VDC for one minute, ensuring electrical safety and long-term reliability.
